starts synced ->,                 synced  <-                         bottom guy turned first.

Hi this is my poem / timer.

Each row is 30 steps, and takes 30 seconds.

The return trip included makes it 1 minute per cycle. At each 59th step of the second being, he/she turns around before the 60th step. This causes a small gap that represents a minute.  Each round the characters’ gap increases once as more minutes are represented. This pattern eventually cycles though and returns to its default state. There can be a total of 60 gaps between them. Meaning that this piece can time up to exactly 1 hour.

It’s also a little poem about two friends separating and getting back together :D

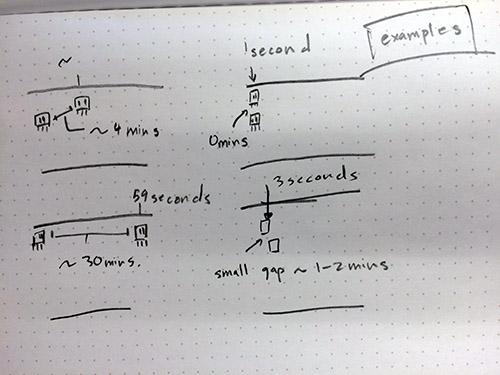

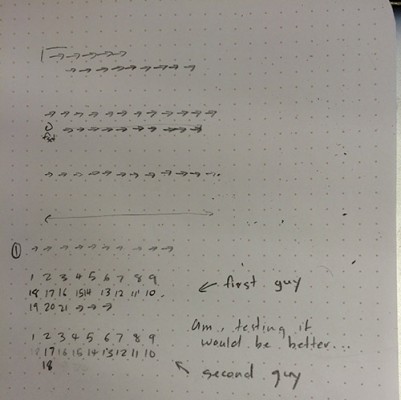

Here is my sketch. and some explainationIMG_0032

IMG_0068

Here is my code!

#include <pebble.h>
#include <stdlib.h>

static Window *s_main_window;

int s_second = 0;
int s_second2 = 0;

bool direction1 = true;
bool direction2 = true;
bool isam = true;

static BitmapLayer *s_bg;
static GBitmap *s_bg_bitmap;

static BitmapLayer *s_sprite_minuite1;
bool s_sprite_minuite1_frame = true;
static BitmapLayer *s_sprite_minuite2;
bool s_sprite_minuite2_frame = true;

static GBitmap *s_sprite1f1_bitmap;
static GBitmap *s_sprite1f2_bitmap;

static GBitmap *s_sprite2f1_bitmap;
static GBitmap *s_sprite2f2_bitmap;

static GBitmap *s_spritef1_bitmap;
static GBitmap *s_spritef2_bitmap;
static GBitmap *s_spritef1L_bitmap;
static GBitmap *s_spritef2L_bitmap;

typedef struct vector2 vector2;

struct vector2
{
 float x;
 float y;
};

vector2 sprite1Position = {10, 10};
vector2 sprite2Position = {10 ,23};

bool animationFrame = false;

static PropertyAnimation *s_property_animation;
static PropertyAnimation *s_property_animation2;

static void destroy_property_animation(PropertyAnimation **prop_animation) {
 if (*prop_animation == NULL) {
 return;
 }

 if (animation_is_scheduled((Animation*) *prop_animation)) {
 animation_unschedule((Animation*) *prop_animation);
 }

 property_animation_destroy(*prop_animation);
 *prop_animation = NULL;
}

static void trigger_custom_animation() {


 destroy_property_animation(&s_property_animation);
 //*s_property_animation = NULL;
 destroy_property_animation(&s_property_animation2);
 //*s_property_animation2 = NULL;

 Layer *s_layer = bitmap_layer_get_layer(s_sprite_minuite1);
 Layer *s_layer2 = bitmap_layer_get_layer(s_sprite_minuite2);

 // Set start and end
 GRect from_frame = layer_get_frame(s_layer);
 GRect to_frame = GRect(sprite1Position.x, sprite1Position.y, 10, 11);

 GRect from_frame2 = layer_get_frame(s_layer2);
 GRect to_frame2 = GRect(sprite2Position.x, sprite2Position.y, 10, 11);

 // move first guy
 if (direction1 == true)
 {
 if (sprite1Position.x < 130)
 {
 sprite1Position.x += 4.0;
 }
 }else
 {
 if (sprite1Position.x > 10)
 {
 sprite1Position.x -= 4.0;
 }
 }

 if (direction2 == true)
 {
 if (sprite2Position.x < 130)
 {
 sprite2Position.x += 4.0;
 }
 }else
 {
 if (sprite2Position.x > 10)
 {
 sprite2Position.x -= 4.0;
 }
 }

 // Create the animation
 s_property_animation = property_animation_create_layer_frame(s_layer, &from_frame, &to_frame);
 s_property_animation2 = property_animation_create_layer_frame(s_layer2, &from_frame2, &to_frame2);

 // Flip the animations
 if (s_sprite_minuite1_frame)
 {
 bitmap_layer_set_bitmap (s_sprite_minuite1, s_sprite1f2_bitmap);
 s_sprite_minuite1_frame = !s_sprite_minuite1_frame;
 }
 else
 {
 bitmap_layer_set_bitmap (s_sprite_minuite1, s_sprite1f1_bitmap);
 s_sprite_minuite1_frame = !s_sprite_minuite1_frame;
 }

 // Flip the animations
 if (s_sprite_minuite2_frame)
 {
 bitmap_layer_set_bitmap (s_sprite_minuite2, s_sprite1f1_bitmap);
 s_sprite_minuite2_frame = !s_sprite_minuite2_frame;
 }
 else
 {
 bitmap_layer_set_bitmap (s_sprite_minuite2, s_sprite1f2_bitmap);
 s_sprite_minuite2_frame = !s_sprite_minuite2_frame;
 }


 // Schedule to occur ASAP with default settings
 animation_schedule((Animation*) s_property_animation);
 animation_schedule((Animation*) s_property_animation2);
}


static void main_window_load(Window *window)
{
 // Sprite 1 textures
 s_spritef1_bitmap = gbitmap_create_with_resource(RESOURCE_ID_f1);
 s_spritef2_bitmap = gbitmap_create_with_resource(RESOURCE_ID_f2);

 s_spritef1L_bitmap = gbitmap_create_with_resource(RESOURCE_ID_f1L);
 s_spritef2L_bitmap = gbitmap_create_with_resource(RESOURCE_ID_f2L);

 // Sprite 1 Set initial
 s_sprite1f1_bitmap = s_spritef1_bitmap;
 s_sprite1f2_bitmap = s_spritef2_bitmap;

 // Sprite 2
 s_sprite2f1_bitmap = s_spritef1L_bitmap;
 s_sprite2f2_bitmap = s_spritef2L_bitmap;

 s_bg_bitmap = gbitmap_create_with_resource(RESOURCE_ID_bg);
 s_bg = bitmap_layer_create(GRect(10, 10, 120, 120));
 bitmap_layer_set_bitmap(s_bg, s_bg_bitmap);
 layer_add_child(window_get_root_layer(window), bitmap_layer_get_layer(s_bg));

 // Sprite Minuite 1
 s_sprite_minuite1 = bitmap_layer_create(GRect(0, 0, 10, 11));
 bitmap_layer_set_bitmap(s_sprite_minuite1, s_spritef1_bitmap);
 layer_add_child(window_get_root_layer(window), bitmap_layer_get_layer(s_sprite_minuite1));

 // Sprite Minuite 2
 s_sprite_minuite2 = bitmap_layer_create(GRect(0, 0, 10, 11));
 bitmap_layer_set_bitmap(s_sprite_minuite2, s_spritef1_bitmap);
 layer_add_child(window_get_root_layer(window), bitmap_layer_get_layer(s_sprite_minuite2));
}

static void main_window_unload(Window *window) {
 // Destroy TextLayer
}

static void tick_handler(struct tm *tick_time, TimeUnits units_changed)
{
 trigger_custom_animation();
 s_second = s_second + 1;

 // First sprite takes 30 steps, 30 steps
 if (s_second >= 30)
 {
 if (direction1)
 {
 s_sprite1f1_bitmap = s_spritef1L_bitmap;
 s_sprite1f2_bitmap = s_spritef2L_bitmap;
 }
 else
 {
 s_sprite1f1_bitmap = s_spritef1_bitmap;
 s_sprite1f2_bitmap = s_spritef2_bitmap;
 }
 direction1 = !direction1;
 s_second = 0;
 }

 // Second sprite takes 30 steps, 29 steps
 s_second2 = s_second2 + 1;
 if (s_second2 >= 29)
 {
 if (direction2)
 {
 if (s_second2 >= 30)
 {
 s_sprite2f1_bitmap = s_spritef1_bitmap;
 s_sprite2f2_bitmap = s_spritef2_bitmap;
 direction2 = !direction2;
 s_second2 = 0;
 }
 }
 else
 {
 s_sprite2f1_bitmap = s_spritef1L_bitmap;
 s_sprite2f2_bitmap = s_spritef2L_bitmap;
 direction2 = !direction2;
 s_second2 = 0;
 }
 }

}

static void init() {

 // Create main Window element and assign to pointer
 s_main_window = window_create();

 // Set handlers to manage the elements inside the Window
 window_set_window_handlers(s_main_window, (WindowHandlers) {
 .load = main_window_load,
 .unload = main_window_unload
 });

 // Show the Window on the watch, with animated=true
 window_stack_push(s_main_window, true);

 // Register with TickTimerService
 tick_timer_service_subscribe(SECOND_UNIT, tick_handler);

 trigger_custom_animation();
}

static void deinit() {
 // Destroy Window
 window_destroy(s_main_window);
}

int main(void) {
 init();
 app_event_loop();
 deinit();
}
