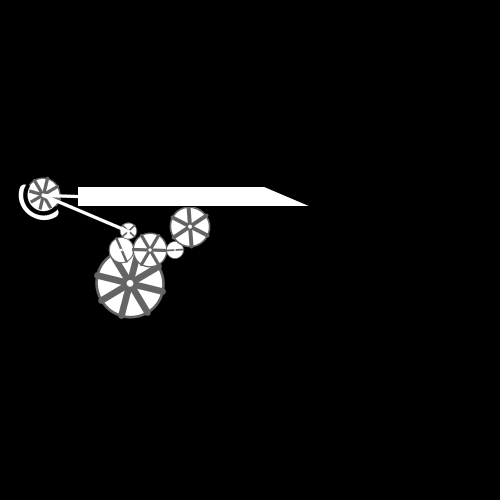

I want to make an interaction of nonorganic objects, and the first thing that came into my mind was a machine. After seeing Golan’s functions, I wanted to make something that starts off slow, then quickly thrusts out, and retracts in a looping fashion. This made me think of a guillotine, which has a slow wind but unleashes quickly. Hence, I made a spike that repeatedly thrusts and is powered by rotating circular gears.

Overall, I felt satisfied with the outcome. I wish maybe it can be more complex, like the example GIF Golan had for this assignment. Also, since the movement is smooth and sliding, I do not know how well it translates to lenticular surface.

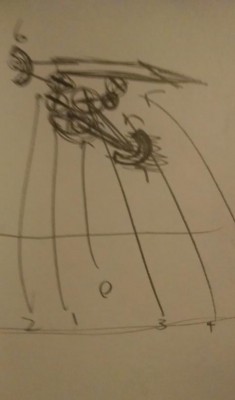

Sketch:

final float SCREENWIDTH = 500f;
final float SCREENHEIGHT = 500f;

import gifAnimation.*;
GifMaker gifExport;

Gear[] gears;
Bar bar;

boolean byTime = false;

void setup()
{
	size((int)SCREENWIDTH, (int)SCREENHEIGHT);
	frameRate(30);
	ellipseMode(CENTER);

	// set up ma gears
	gears = new Gear[7];
	gears[0] = new Gear(390f, 850f, 200f, 1f, 0.1f, 4, false);
	gears[1] = new Gear(364f, 750f, 75f, 1.3f, -0.5f, 1, false);
	gears[2] = new Gear(385f, 693f, 50f, 0.5f, 0.9f, 2, false);
	gears[3] = new Gear(450f, 750f, 100f, 1f, 0.2f, 3, false);
	gears[4] = new Gear(525f, 750f, 50f, 0.2f, -0.9f, 1, false);
	gears[5] = new Gear(570f, 680f, 120f, 0.4f, 0.2f, 3, false);
	gears[6] = new Gear(130f, 585f, 100f, 1f, 0.095f, 4, true);

	// set up the bar
	bar = new Bar(230f, 560f, 700f, 60f);


	gifExport = new GifMaker(this, "machine.gif");
  gifExport.setRepeat(0); // make it an "endless" animation
  gifExport.setDelay(1000/30);  //maybe no delay?
}

void draw()
{
	pushMatrix();

		// do all calculation as if screen is 1500x1500
		scale(SCREENWIDTH/1500f, SCREENHEIGHT/1500f);

		background(0,0,0);

		// draw ma gears
		for(int i = 0; i < gears.length; i++)
			gears[i].draw();

		bar.draw();

		stroke(255,255,255);
		strokeWeight(10f);
		line(gears[2].x, gears[2].y, gears[6].x, gears[6].y);
		line(gears[6].x, gears[6].y, bar.x, bar.y + bar.height/2f);

	popMatrix();

  gifExport.addFrame();

  if(frameCount == 58)
  	gifExport.finish();
}



class Bar
{
	public float x, y, width, height;
	private float origX;

	public Bar(float x, float y, float w, float h)
	{
		this.x = x;
		this.y = y;
		this.width = w;
		this.height = h;
		this.origX = x;
	}

	void update()
	{
		float t = 0f;

		if(byTime)
		{
			t = (millis()%1000f)/1000f;
			if(millis()%2000f > 1000f)
				t = 1f - t;
		}
		else
		{
			t = ((float)frameCount%29f)/29f;
			if(frameCount%58 > 28)
				t = 1f - t;
		}

		float dx = function_CircularFillet(t, 0.803f, 0.31f, 0.75f);
		x = origX + 300f*dx;
	}

	void draw()
	{
		this.update();

		beginShape();
			vertex(x,y);
			vertex(x+width*0.8f,y);
			vertex(x+width,y+height);
			vertex(x,y+height);
		endShape();
		//rect(x,y,width,height);
	}
}

class Gear
{
	public float diameter, angle, angleRate, numSpokes, x, y;
	boolean hasArc;

	public Gear(float x, float y, float r, float a, float ar, int ns, boolean ha)
	{
		this.x = x;
		this.y = y;
		this.diameter = r;
		this.angle = a;
		this.angleRate = ar;
		this.numSpokes = ns;
		this.hasArc = ha;
	}

	void update()
	{
		float t = 0f;

		if(byTime)
		{
			t = (millis()%1000f)/1000f;
			if(millis()%2000f > 1000f)
				t = 1f - t;
		}
		else
		{
			t = ((float)frameCount%29f)/29f;
			if(frameCount%58 > 28)
				t = 1f - t;
		}
		float dar = function_CircularFillet(t, 0.803f, 0.31f, 0.75f);

		angle += (dar+0.1f)*angleRate*3f;
	}

	void draw()
	{
		this.update();

		pushMatrix();
			translate(x, y);
			rotate(angle);

			stroke(100,100,100);
			strokeWeight(4f*diameter/100f);
			float rd = random(0.98f, 1.02f) * diameter;
			ellipse(0f, 0f, rd, rd);

			strokeWeight(10f*diameter/100f);
			for(int i = 0; i < numSpokes; i++)
			{
				pushMatrix();
				rotate((float)Math.PI*(float)i/(float)numSpokes);
				line(-rd/2f, 0f, rd/2f, 0f);
				popMatrix();
			}

			noStroke();
			ellipse(0f, 0f, rd*0.1f, rd*0.1f);
			stroke(100,100,100);


			if(hasArc)
			{
				stroke(255,255,255);
				strokeWeight(30f);
				noFill();

				arc(0f, 0f, diameter*1.2f, diameter*1.2f, 0f, 2.4f);

				stroke(0,0,0);
				strokeWeight(13f);

				arc(0f, 0f, diameter*1.1f, diameter*1.1f, -0.2f, 2.6f);

				strokeWeight(3f);
				fill(255,255,255);
			}

		popMatrix();
	}
}
