Zaport-clock

The principal element of the clock is the recursive tree. A second is represented by the leaves pulsing in and out. A minute is represented by the rotation of the tree around the perimeter of the clock face. An hour is represented by the left-right position of the tree, which resembles a sway. Finally, 12-hour cycle is represented by the circles in the border of the clock. This exercise taught me a lot about the translate function in p5js, which I used throughout. The clock is simply made and has a simple aesthetic. I was hoping to create a clock that resembled time in a smooth and uninterrupted way.

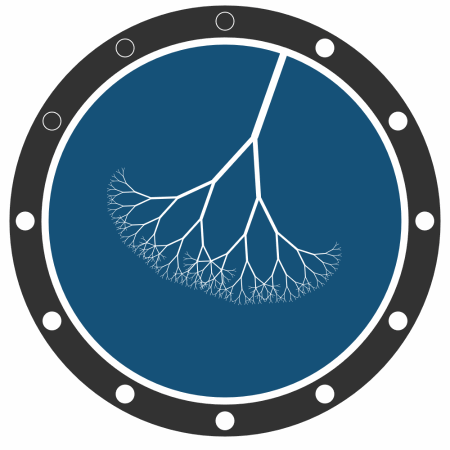

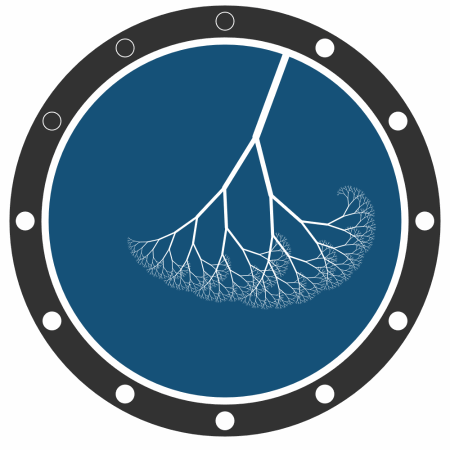

Here are some GIFs from the 9-o’clock hour (9:00, 9:15, 9:30, 9:45):



Here’s the current time using the code with openProcessing:

Here are my sketches:

























Here is my code:

//Zaport
//Clock for 60-212
//2018

var xc
var yc
var xSide = 500
var ySide = xSide
var bigRadius = 200

function setup() {
  createCanvas(xSide, ySide);
}

function draw() {

  //https://www.openprocessing.org/sketch/387974
	//by Jacob Joaquin
  //translate(width / 2.0, height / 2.0);
  var date = new Date(),
    hours = abs(12-(date.getHours())),
    minutes = date.getMinutes(),
    seconds = date.getSeconds(),
    ms = date.getMilliseconds(),
    i,
    v,
    t;

  // Minute hand
  t = (seconds + ms / 1000) * TAU / 60 - HALF_PI;
  v = p5.Vector.fromAngle(t);
  v.mult(bigRadius);
  xc = v.x
  yc = v.y

  var smoothTime = (0.01*seconds)+minutes

  background(255);
  smooth()

  conditionalTime = abs(30-smoothTime)
  if (0 == hours%2) {
  	angleRight = (conditionalTime/75)
  	angleLeft =(60-conditionalTime)/75
  }else{
    angleLeft = (conditionalTime/75)
  	angleRight =(60-conditionalTime)/75
  }
  if (0 == seconds%2) {
  	numberBranches = ms/50
  }else {
    numberBranches = 10-(ms/50)
  }

  fill(50)
  ellipse(width/2,height/2,bigRadius*2+80,bigRadius*2+80);
  stroke(255);
  strokeWeight(8)
  fill(21, 81, 120);
  ellipse(width/2,height/2,bigRadius*2,bigRadius*2);

  push();
  translate(width/2,height/2);
  translate(xc, yc);
  rotate(t - radians(90));
  fill(255)
  branch(100,8);
  pop();

	// Minute Markers
  fill(255);
  strokeWeight(1);
  for (i = 0; i < 60; i++) {
    v = p5.Vector.fromAngle((i + 1) / 60.0 * TAU - HALF_PI);
    v.mult(bigRadius+22);
    if (i % 5 == 4) {
      push()
      if (i < (hours*5)) { fill(255) } else { fill(50) } translate(width/2,height/2); ellipse(v.x, v.y, 20, 20); pop() } } } //Recurive tree code adapted from code by Mary Notari (marinotari) //https://alpha.editor.p5js.org/marynotari/sketches/HkAiz5Jxf function branch (len,strokeThickness) { strokeWeight(strokeThickness); line(0, 0, 0, -len); translate(0, -len); var fraction = 2/3; var weightFraction = 2/3 if(len > numberBranches && len > 1) {
    push();
    rotate(angleLeft);
    branch(len*fraction,strokeThickness*weightFraction);
    pop();

    push();
    rotate(-angleRight);
    branch(len*fraction,strokeThickness*weightFraction);
    pop();
  }

}
