zaport-Intersections

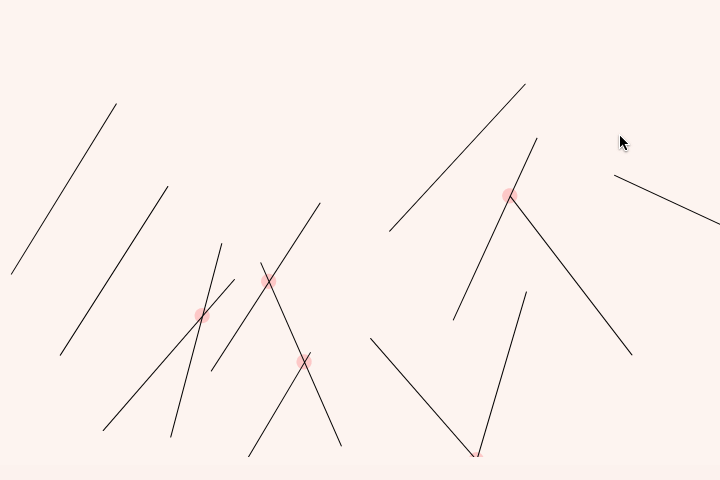

Here’s an animated GIF of the app:

Here’s the code:

var lines = []
var circles = []
var lineLength = 200
var	circleRadius = 15
var	numberOfLines = 12
var circleCounter = 0
var border = 100

function setup() {
  createCanvas(720, 480);
  generateLines()
  generateIntersections()
}

//generate lines

function generateLines() {
	for (var i = 0; i <= numberOfLines; i = i+1) {
		var x1 = random(border, width-border);
		var y1 = random(border,height-border);
		var x2 = random(x1-lineLength, x1+lineLength);
    var diffX = abs(x2-x1)
		var y2 = y1 + (pow((abs(pow(lineLength,2) - pow(diffX,2))),0.5))
		newLine = [x1, y1, x2, y2];
		append(lines, newLine);
    //print(diffX);
 } }


//gerneate intersections
//Equation by Paul Bourke
//http://www-cs.ccny.cuny.edu/~wolberg/capstone/intersection/Intersection%20point%20of%20two%20lines.html

function generateIntersections() {

  for (var i = 0; i <= numberOfLines; i = i+1) {

      x1 = lines[i][0]
      y1 = lines[i][1]
      x2 = lines[i][2]
      y2 = lines[i][3]

    for (var j = 0; j <= numberOfLines; j = j+1) {

    	x3 = lines[j][0]
      y3 = lines[j][1]
      x4 = lines[j][2]
      y4 = lines[j][3]

    ua = ((x4-x3)*(y1-y3) - (y4-y3)*(x1-x3))/((y4-y3)*(x2-x1) - (x4-x3)*(y2-y1))
    ub = ((x2-x1)*(y1-y3) - (y2-y1)*(x1-x3))/((y4-y3)*(x2-x1) - (x4-x3)*(y2-y1))

    intersectionX = x1 + ua*(x2-x1)
    intersectionY = y1 + ua*(y2-y1)

    circleCenter = [intersectionX,intersectionY];

    if ((0 < ua) && (ua < 1) && (0 < ub) && (ub < 1)){
    append(circles, circleCenter);
    circleCounter = circleCounter + 1
    }}
} }

function draw() {
  background(254,244,240);
  drawings()
}

function drawings() {
  drawCircles()
  drawLines()
}

//Draw Lines
function drawLines() {
	for (var i = 0; i <= numberOfLines; i = i+1) {
			x1 = lines[i][0]
			y1 = lines[i][1]
			x2 = lines[i][2]
			y2 = lines[i][3]
    	stroke(0, 0, 0);
			line(x1, y1, x2, y2);
}}

//Draw cricles
function drawCircles () {
	for (var k = 0; k < circleCounter; k = k+1) {
    size = circleRadius
    x = circles[k][0]
    y = circles[k][1]
    noStroke()
    fill(253, 200, 199);
    ellipse(x,y,size,size)
}}

function mouseClicked() {
  lines = []
	circles = []
	circleCounter = 0
  generateLines()
  generateIntersections()
  redraw()
}
