ookey-AnimatedLoop

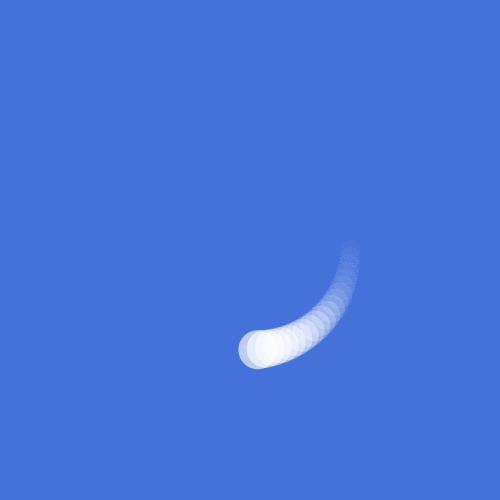

For my piece, I was inspired by loading screens.  I like how they repeat infinitely but have to be entertaining enough to keep you occupied.  I also enjoy how circular movements have now gained this universal meaning of “loading.”  I ended up picking two easing functions.  The first is a more simple fade in and out, Penner’s EaseInOut Back,  to add some variation as the teardrop moves around while still looking natural.  I used Penner’s EaseInOut Elastic for the movement of the shape itself since it is more exciting than the typical going around in a circle movement.  In the end, I went with a more simple design of a loading screen due to timing.  In the end, although I think the loading screen looks nice, I wish I had given myself enough time and resources in order to make something more complex.  Being new to processing, though, I learned a lot throughout my creation of the gif.

sketch:



code:

// Template taken from Prof. Golan Levin
// These can then be combined into an animated gif.
// Known to work with Processing 3.3.6
// Prof. Golan Levin, January 2018

//===================================================
// Global variables.
String  myNickname = "ookey";
int     nFramesInLoop = 100;
int     nElapsedFrames;
boolean bRecording;

//===================================================
void setup() {
  size (500, 500);
  bRecording = false;
  nElapsedFrames = 0;
}
//===================================================
void keyPressed() {
  if ((key == 'f') || (key == 'F')) {
    bRecording = true;
    nElapsedFrames = 0;
  }
}

//===================================================
void draw() {

  // Compute a percentage (0...1) representing where we are in the loop.
  float percentCompleteFraction = 0;
  if (bRecording) {
    percentCompleteFraction = (float) nElapsedFrames / (float)nFramesInLoop;
  } else {
    percentCompleteFraction = (float) (frameCount % nFramesInLoop) / (float)nFramesInLoop;
  }

  // Render the design, based on that percentage.
  renderMyDesign (percentCompleteFraction);

  // If we're recording the output, save the frame to a file.
  if (bRecording) {
    saveFrame("frames/" + myNickname + "_frame_" + nf(nElapsedFrames, 4) + ".png");
    nElapsedFrames++;
    if (nElapsedFrames >= nFramesInLoop) {
      bRecording = false;
    }
  }
}

//===================================================
void renderMyDesign (float percent) {

  //----------------------
  background (#4571DA);
  smooth();
  stroke (0, 0, 0);
  strokeWeight (2);

  //---------------------
  float cx = width/2;
  float cy = height/2;
  float radius;
  float angle;
  float px;
  float py;


  for (int i = 0; i < 20; i++)
  {
    radius = 100;
    angle = function_PennerEaseInOutElastic(percent) * TWO_PI +  (PI/40 * i);
    px = cx + radius*cos(angle);
    py = cy + radius*sin(angle);
    fill(color(255, 255, 255, 255 * map(cos(angle), 0., 1., 1., 0.05) * (.7 + function_PennerEaseInOutBack(sin(PI * percent)))));
    noStroke();
    ellipse (px, py, 20 + i, 20 + i);
  }

}

// Taken from https://github.com/golanlevin/Pattern_Master
float function_PennerEaseInOutElastic (float t) {
 // functionName = "Penner's EaseInOut Elastic";

  if (t==0) return 0;
  if ((t/=0.5)==2) return 1;
  float p=(.3f*1.5f);
  float a=1;
  float s=p/4;

  if (t < 1) {
    float postFix = pow(2, 10*(t-=1)); // postIncrement is evil
    return -0.5f*(postFix* sin( (t-s)*(2*PI)/p ));
  }
  float postFix = pow(2, -10*(t-=1)); // postIncrement is evil
  return postFix * sin( (t-s)*(2*PI)/p )*.5f + 1;
}

float function_PennerEaseInOutBack (float x) {
//  functionName = "Penner's EaseInOut Back";

  float s = 1.70158 * 1.525;
  x /= 0.5;

  float y = 0;
  if (x < 1) {
    y = 1.0/2.0* (x*x*((s+1.0)*x - s));
  }
  else {
    x -= 2.0;
    y = 1.0/2.0* (x*x*((s+1.0)*x + s) + 2.0);
  }
  return y;
}
