Celine Nguyen

23 Jan 2014

Computational Preoccupations with Vases

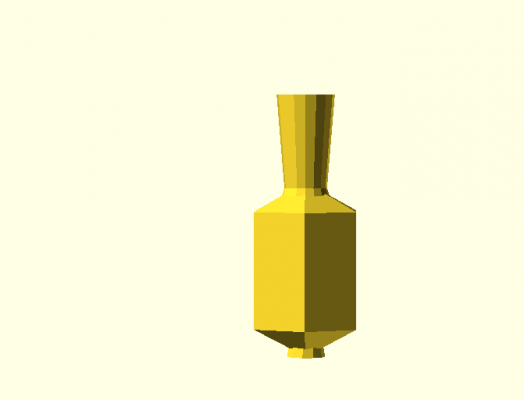

radius = 10; stemHeight = 20; stemBracketHeight = 5; bodyHeight = 20; elongation = 5;

radius = 10; stemHeight = 20; stemBracketHeight = 5; bodyHeight = 20; elongation = 5;

Summary

The faceted vase is an #openscad experiment by @mynameisceline to explore parametric polygonal decor.

Narrative

I chose to create something beautiful and useful. Vases have quite a bit of variety in form and structure and utility—the ongoing issue in my family every Mother’s Day is that my sister and I buy flowers that are too tall for a short vase, too short for a tall vase, too many for a slim vase, or too few for a wide vase. Clearly, the answer is parametric forms.

I’m also a huge fan of polygonal shapes (2D and 3D) in art and design. It so happens I have a pinboard full of polygonal inspiration:

Follow Celine Nguyen’s board Polygonal Geometries on Pinterest.

So. I made two initial sketches of polygonal vases (one with a faceted body and smoother stem, one with a faceted body and a curved inner cavity), but went with the first option to give me more customization/parameterization options. I’m pretty happy with how it turned out, since it’s reasonably changeable and I enjoy the different character that a tall/elegant vase and a small/squat vase convey.

Sketches for parametric facet vase

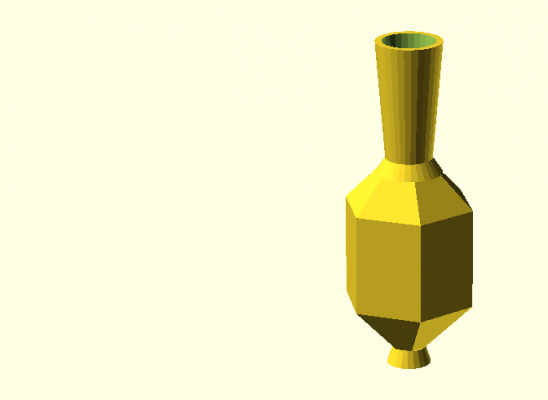

radius = 20; stemHeight = 20; stemBracketHeight = 2; bodyHeight = 20; elongation = 10;

radius = 20; stemHeight = 20; stemBracketHeight = 2; bodyHeight = 20; elongation = 10;

My initial sketch & vision for this called for the stem of the vase to be smoothly tapered and curved along the side (kind of like a conventional vase) to get a good contrast between the chunky/blocky part of the vase and a smoother, more delicate bit. I unfortunately couldn’t figure this out (although I spent some enjoyable time playing around with minkowski() and hull() in the attempt).

radius = 20; stemHeight = 40; stemBracketHeight = 5; bodyHeight = 30; elongation = 20;

radius = 20; stemHeight = 40; stemBracketHeight = 5; bodyHeight = 30; elongation = 20;

Code

(For some reason Thingiverse won’t finish processing my file uploads ; n ; )

+ Github repo.

// manipulable parameters!
radius = 10; // default: 10
stemHeight = 20; // default: 20
stemBracketHeight = 1; // default: 1
bodyHeight = 20; // default: 20
elongation = 5; // default: 8

// parameters i ask you not to touch
hollowThickness = 2;
opening = 4;
stemTopBase = radius / 2;
stemBottomBase = radius / 3;

// stem
translate([0, 0, elongation]){
	difference() {
		cylinder(h = stemHeight, r1 = stemBottomBase, r2 = stemTopBase, center = false);
		cylinder(h = stemHeight, r1 = stemBottomBase - hollowThickness, r2 = stemTopBase - hollowThickness, center = false);
	}
}

// stem bracket
translate([0, 0, 0]) {
	difference() {
		cylinder(h = elongation + stemBracketHeight, r1 = stemTopBase, r2 = stemBottomBase, center = false);
		cylinder(h = elongation + stemBracketHeight, r1 = stemTopBase - hollowThickness, r2 = stemBottomBase - hollowThickness, center = false);
	}
}

// top
translate([0, 0, 0]) {
difference() {
	polyhedron(
	  points = [[radius * 0.87, radius * 0.5, 0], // 0
	            [radius * 0, radius * 1, 0], // 1
	            [radius * -0.87, radius * 0.5, 0], // 2
	            [radius * -0.87, radius * -0.5, 0], // 3
	            [radius * 0, radius * -1, 0], // 4
	            [radius * 0.87, radius * -0.5, 0], // 5
	            [0, 0, elongation]], // the apex point, 6
	  triangles = [[0, 6, 1], [1, 6, 2], [2, 6, 3], [3, 6, 4], [4, 6, 5], [5, 6, 0], // sides
	               [0, 1, 3], [1, 2, 3], [0, 3, 4], [0, 4, 5]] // base
	 );
	cylinder(h = elongation, r1 = stemBottomBase - hollowThickness, r2 = stemTopBase - hollowThickness, center = false);
}
}

// body
translate([0, 0, -bodyHeight]) {
	difference() {
		linear_extrude(height = bodyHeight, center = false, convexity = 10) {
		  polygon(
	      points = [[radius * 0.87, radius * 0.5], // 0
	                [radius * 0, radius * 1], // 1
	                [radius * -0.87, radius * 0.5], // 2
	                [radius * -0.87, radius * -0.5], // 3
	                [radius * 0, radius * -1], // 4
	                [radius * 0.87, radius * -0.5]]
	    );
		}
		cylinder(h = bodyHeight, r1 = stemTopBase - hollowThickness, r2 = stemTopBase - hollowThickness, center = false);
	}
}

// bottom
translate([0, 0,  -bodyHeight]) {
	rotate(a = [0, 180, 0]) {
		polyhedron(
		  points = [[radius * 0.87, radius * 0.5, 0], // 0
		            [radius * 0, radius * 1, 0], // 1
		            [radius * -0.87, radius * 0.5, 0], // 2
		            [radius * -0.87, radius * -0.5, 0], // 3
		            [radius * 0, radius * -1, 0], // 4
		            [radius * 0.87, radius * -0.5, 0], // 5
		            [0, 0, elongation]], // the apex point, 6
		  triangles = [[0, 6, 1], [1, 6, 2], [2, 6, 3], [3, 6, 4], [4, 6, 5], [5, 6, 0], // sides
		               [0, 1, 3], [1, 2, 3], [0, 3, 4], [0, 4, 5]] // base
		 );
	}
}

// base
translate([0, 0,  -bodyHeight - elongation]){
	cylinder(h = 5, r1 = radius / 3, r2 = radius / 4, center = false);
}
