Austin McCasland

22 Jan 2014

Impossible Cube by @austastic ever seen this cube? It’s an illusion. See it from the other angles!

When I was young I saw a flat image from the correct angle that makes this appear as a cube. I was never able to recreate the shape with legos, or any other media. Frustrated I gave up. OpenScad gave me the opportunity to really test if the shape was possible. Turns out it was an illusion after all! I think I recreated the exact shape, but I could have played around more with different margins to make it seem more cube-like from other angles.

cube1

cube2

cube3

cube4


cube([2,2,10]);
translate([0,0,10]);
cube([2,12,2]);
translate([0,10,0]) cube([2,2,14]);
translate([0,4,12]) cube([2,8,2]);
translate([0,2,12]) cube([14,2,2]);
translate([14,2,12]) cube([2,14,2]);
translate([4,14,12]) cube([12,2,2]);
translate([4,14,0]) cube([2,2,14]);
translate([4,14,0]) cube([12,2,2]);
translate([16,14,0]) cube([2,2,10]);
translate([16,4,8]) cube([2,12,2]);
translate([16,4,-4]) cube([2,2,12]);
translate([16,4,-4]) cube([2,10,2]);
translate([4,12,-4]) cube([12,2,2]);
translate([2,0,-4]) cube([2,14,2]);
translate([2,0,-4]) cube([12,2,2]);
translate([12,0,-4]) cube([2,2,14]);
translate([0,0,8]) cube([12,2,2]);

Sketches to come when I can get to my sketchbook tomorrow morning!

Andrew Sweet

22 Jan 2014

Interesting, Beautiful, Useful

Parametric Lego Brick by @HeySweet is a scalable, dimension-pickable open-source #OpenSCAD Lego model file that can support all sizes

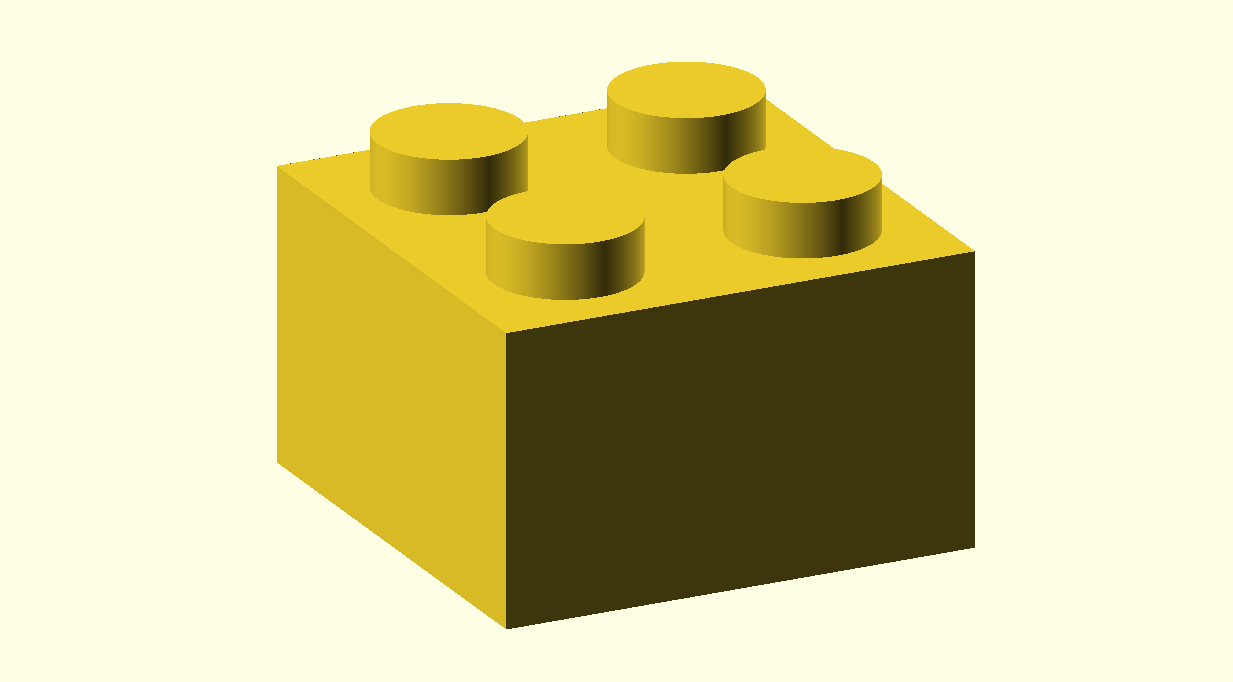

lego_0

Growing up, Legos were one of my creative outlets. I could build complex structures out of really simple pieces, and I always liked that. I remember one time picking up Lego’s younger’s child friendly Duplo block somewhere and trying to fit a Lego into. It fit perfectly, and it shocked me because they were totally different sizes. There’s now reason somebody couldn’t scale down Legos up or down 2, 4, 8 times and still get the same effect I had experienced. Additionally if 3D printed, you could have an endless supply of the exact Lego you were missing to complete your structure.

In the design process, dealing with the 1 by x case and other edge cases was clearly something I had to iterate toward in order to support. All of the dimensions I’ve grabbed are from online hobbyists, so I can’t be sure that they will snap together with other Legos unless I try. From what I can tell visually, I made a decent parametric replica of a Lego. If I wanted to continue with the project, there’s now a much wider variety of Legos that I could attempt to support.

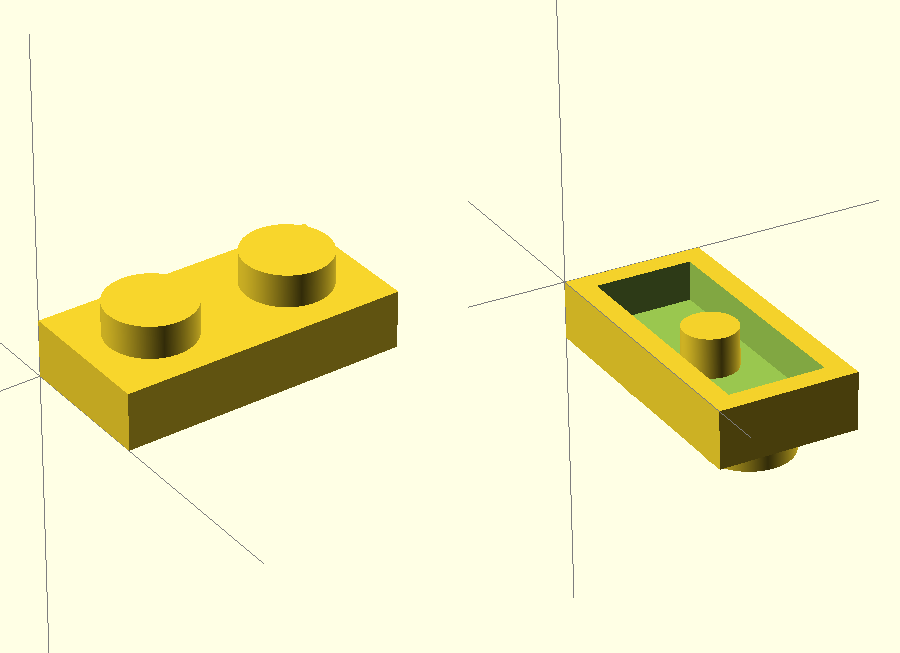

lego_3

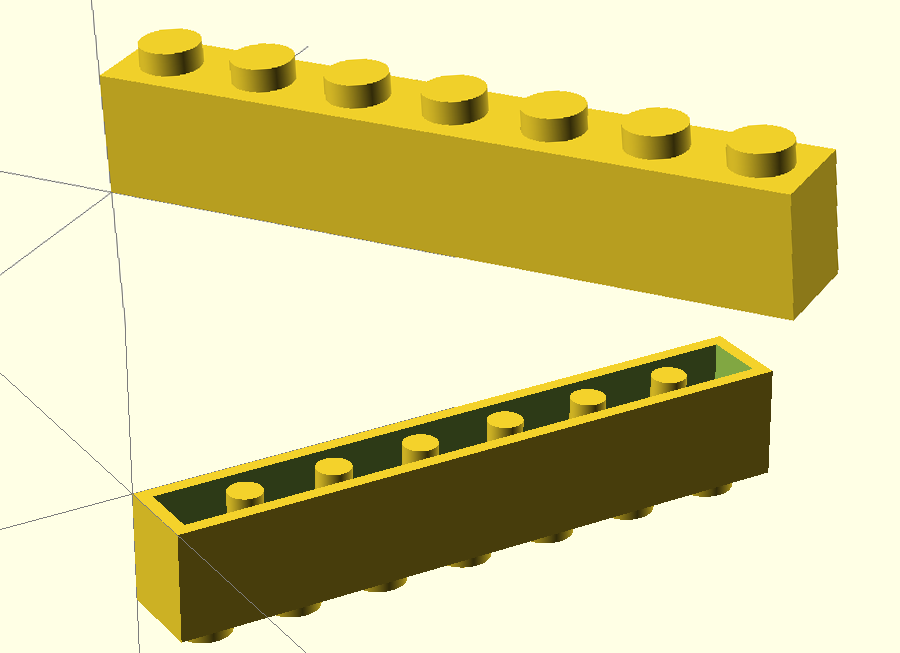

lego_2

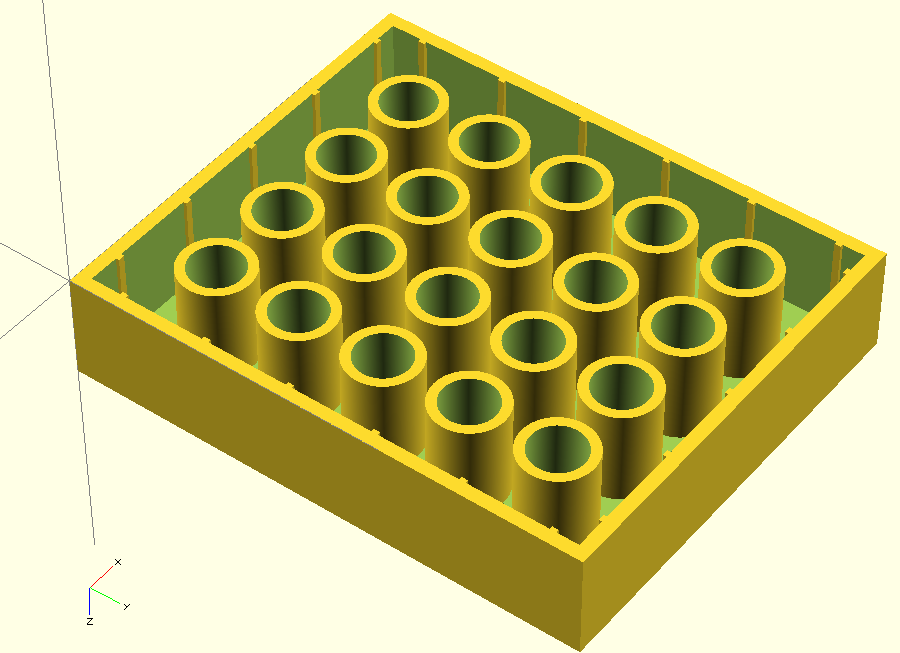

lego4 lego3

lego_1

Here’s a list of LEGO dimensions broken down.

brick_dim_1

/* Parameters */

//Non-Zero integer values for rows and cols, or number of pegs
numRows = 2;
numCols = 3;

// 1/3 and 1 are the two standard heights,
// all non-negative heights technically supported
height = 1;

// Multiples of 2 of each other can fit into each other
brickScale = 1.0;

// The higher the number, the smoother the curves
curveFidelity = 50;

/* End Parameters */

/* Lego Dimensions courtesy of:

http://www.robertcailliau.eu/Lego/Dimensions/zMeasurements-en.xhtml

and

http://static2.wikia.nocookie.net/__cb20130331204917/legomessageboards/images/3/3c/Lego_brick_2x4.png

*/

// Brick Dimensions
brickHeightDim = 9.6; // toBeScaled

brickUnit = 8.0;

dWidth = 0.2;
brickWidth = ((brickUnit * numRows) - dWidth) * brickScale;
brickDepth = ((brickUnit * numCols)  - dWidth) * brickScale;

brickHeight = (height * brickHeightDim) * brickScale;

shellThicknessTop = 1.0 * brickScale;
shellThicknessSides = 1.2 * brickScale;

// UnderPeg
uPegMaxRadius = 6.51 * brickScale/2;
uPegMinRadius = 4.8 * brickScale/2;
uPegOffset    = (8 - 0.1) * brickScale;
uPegHeight    = (brickHeight - shellThicknessTop) * brickScale;

// Pegs
tempDistance = 2.4 + 1.6; // To be scaled
pegOffset    = (tempDistance - 0.1) * brickScale;
tempRadius   = 4.8 / 2.0;
pegDistance  = brickUnit * brickScale;

pegRadius   = tempRadius * brickScale;
pegHeight   = 1.8 * brickScale;

// KnobHolders (small rectangular protrusions underneath)
khWidth  = 0.6 * brickScale;
khDepth  = 0.3 * brickScale;
khOffset = shellThicknessSides + khDepth + pegRadius+ (0.1 * brickScale);

// Create the Brick
difference()
{
cube([brickWidth, brickDepth, brickHeight]);

translate([shellThicknessSides,
			shellThicknessSides,
			-1])
cube([brickWidth - (shellThicknessSides * 2),
		brickDepth - (shellThicknessSides * 2),
		brickHeight - shellThicknessTop + 1]);
}

if (numRows > 1 && numCols > 1){
/* Add Interior */
for (row = [1:(numRows - 1)]){
	for (col = [1:(numCols - 1)]){

		// Cylinders
		translate([uPegOffset + (pegDistance * (row - 1)),
				   uPegOffset + (pegDistance * (col-1)),
				   0])
		difference()
		{
		cylinder(h=uPegHeight,
				 r1=uPegMaxRadius,
				 r2=uPegMaxRadius, $fn=curveFidelity);
		translate([0,0,-1])
		cylinder(h=uPegHeight+0.999,
				 r1=uPegMinRadius,
				 r2=uPegMinRadius, $fn=curveFidelity);
		}
	}
}
} else {
	assign (rad = (pegDistance - (pegRadius * 2))/2 - (0.1 * brickScale))
    {
		if (numRows > 1){

			for (row = [1:(numRows - 1)]){
				translate(
					[uPegOffset + (pegDistance * (row - 1)),
				  	brickUnit/2,
				  	0])
				cylinder(h=uPegHeight,
					 	r1=rad,
					 	r2=rad, $fn=curveFidelity);
			}

		} else if (numCols > 1){
			for (col = [1:(numCols - 1)]){
				translate(
					[brickUnit/2,
				uPegOffset + (pegDistance * (col - 1)),
				  	0])
				cylinder(h=uPegHeight,
					 	r1=rad,
					 	r2=rad, $fn=curveFidelity);
			}
		}
	}
}

// KnobHolders (underneath)
if (numRows > 1 && numCols > 1){
for (row = [0:(numRows - 1)]){
		translate([khOffset + (pegDistance * row),
				   shellThicknessSides,
				   0])
		cube([khWidth, khDepth, uPegHeight]);

		translate([khOffset + (pegDistance * row),
			(numCols * brickUnit) - shellThicknessSides - khDepth - (0.2 * brickScale),
				   0])
		cube([khWidth, khDepth, uPegHeight]);
}

for (col = [0:(numCols - 1)]){
		translate([shellThicknessSides,
				   khOffset + (pegDistance * col),
				   0])
		cube([khDepth, khWidth, uPegHeight]);

		translate([(numRows * brickUnit) - shellThicknessSides - khDepth - (0.2 * brickScale),
khOffset + (pegDistance * col),
				   0])
		cube([khDepth, khWidth, uPegHeight]);
}
}

// Create the Pegs
for (row = [0:(numRows - 1)]){
	for (col = [0:(numCols - 1)]){
		translate([pegOffset + (pegDistance * row),
				   pegOffset + (pegDistance * col),
				   brickHeight])
		cylinder(h=pegHeight,
				 r1=pegRadius,
				 r2=pegRadius, $fn=curveFidelity);
	}
}
