tyvan-Intersections

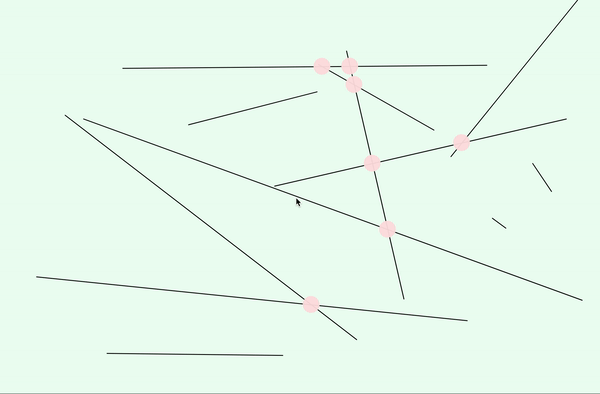

Using objects to hold lines and points was a fun exercise. If I were to re-code this project, I would draw the lines in a separate function, so they intersect above the pink dots.

var numLines = 12;
var dia = 20;
var xOne, yOne, xTwo, yTwo;
var lines = [];
var inters = [];

// Properties related to whole document
function setup() {
    createCanvas(720, 480);
    noLoop();
    ellipseMode(CENTER);
}
// Starts the first session
function draw() {
    mousePressed();
}

// Refreshes everything on click
function mousePressed() {
    background(235, 254, 240);
    lines = [];
    inters = [];
    for(i = 0; i < numLines; i++) {
        generateLine();
    }
    drawLines();
}

// Places x, y coordinates into matrix
function generateLine(){
    var line = {
        x1: random(width),
        y1: random(height),
        x2: random(width),
        y2: random(height),
    }
    lines.push(line);
}

function drawLines() {
    // Iterates through matrix of coordinates
    for(i = 0; i < numLines; i++){
        var x1 = lines[i].x1;
        var y1 = lines[i].y1;
        var x2 = lines[i].x2;
        var y2 = lines[i].y2;
        for(j = 0; j < numLines; j++){
            var x3 = lines[j].x1;
            var y3 = lines[j].y1;
            var x4 = lines[j].x2;
            var y4 = lines[j].y2;
            LineIntersect(
                x1, y1, x2, y2, x3, y3, x4, y4);
        }
        strokeWeight(1);
        line(x1, y1, x2, y2);
    }
    for(i = 0; i < inters.length; i++){ mx = inters[i][0]; my = inters[i][1]; strokeWeight(0); fill(255, 220, 220, 200); ellipse(mx, my, dia, dia); } } // Function adapted from Paule Bourke // http://paulbourke.net/geometry/pointlineplane/pdb.c function LineIntersect (x1, y1, x2, y2, x3, y3, x4, y4) { var mua,mub; var denom,numera,numerb; var tru; denom = (y4-y3) * (x2-x1) - (x4-x3) * (y2-y1); numera = (x4-x3) * (y1-y3) - (y4-y3) * (x1-x3); numerb = (x2-x1) * (y1-y3) - (y2-y1) * (x1-x3); var mx; var my; if (abs(denom) > 0){
   /* Is the intersection along the segments */
   mua = numera / denom;
   mub = numerb / denom;
   if (mua < 0 || mua > 1 || mub < 0 || mub > 1) {
      return;
   } else {
        mx = x1 + mua * (x2 - x1);
        my = y1 + mua * (y2 - y1);
        inters.push([mx, my]);
   }
    }
}
