kerjos-Mocap

This is my prototype for a live motion-capture installation, in which you would see a mirror-version of yourself on a screen, with these elements mapped to your body. I think that there’s a lot more potential for even these grabbing and eating motions, but one of the aspects of this project that I like is the element of surprise with what you might pull down from above you. I also think the fig-leaf, as roughly rendered as it is, adds a level of humor that jives with the limits of motion-capture software.

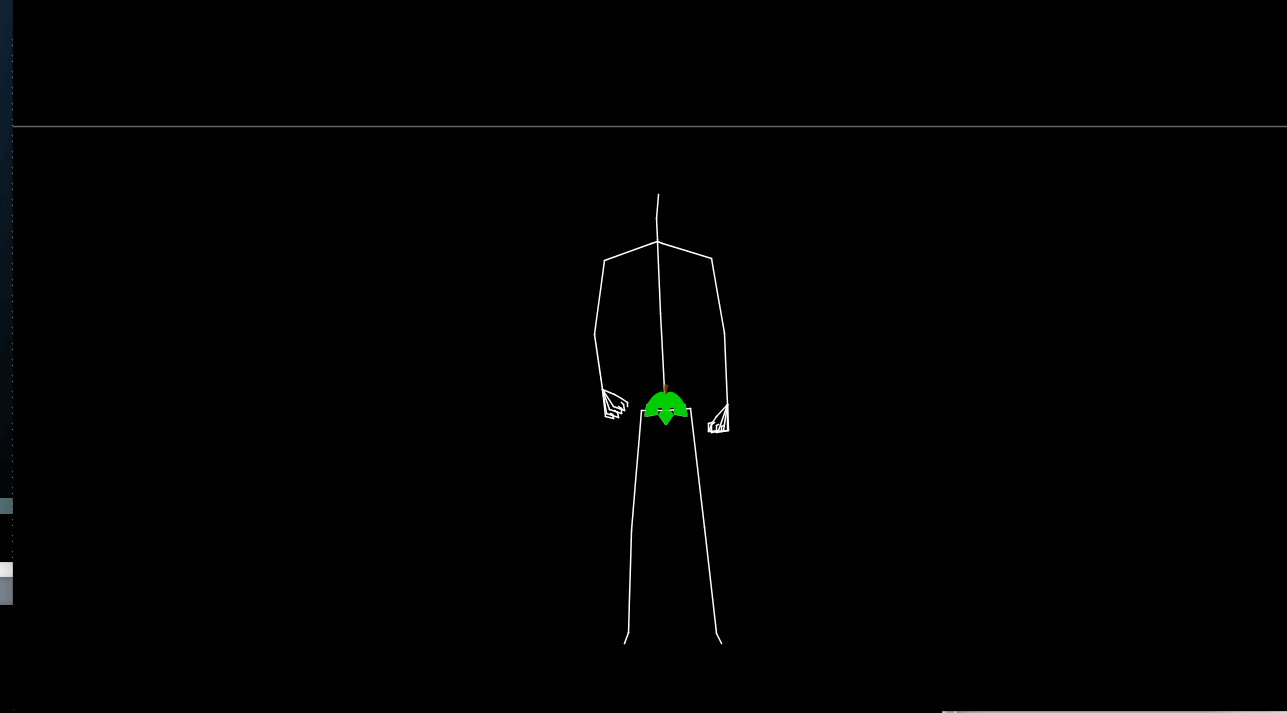

Here’s a video if you want to see the full loop.

My idea for the motion and treatment I really conceived at once (See my sketch below!); it’s a basic pairing, and if I developed this project more, I think that the motion of grabbing would drive my future treatments.

Here’s some process documentation for making the fruit:

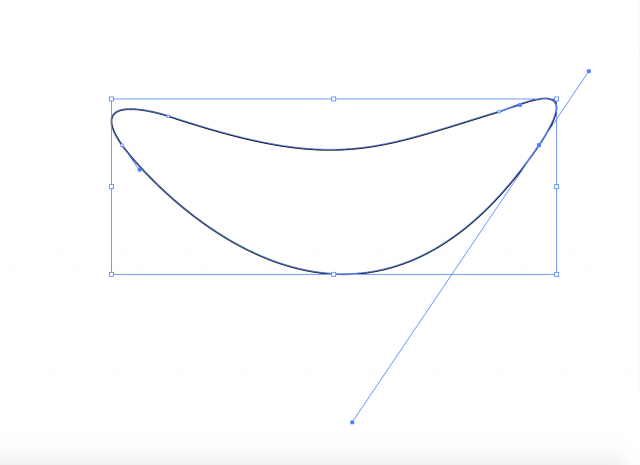

I start usually by drawing the approximate shape in Illustrator, to get an idea for the bezier curves:

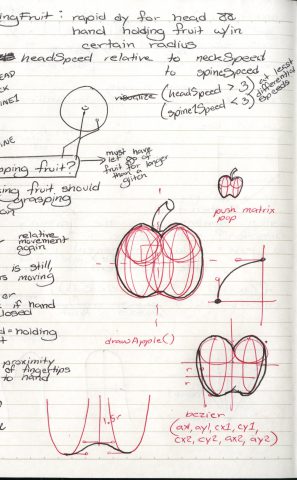

Or I work in my sketchbook, with how I think the curves will work:

In a separate Processing document, I render the shape:

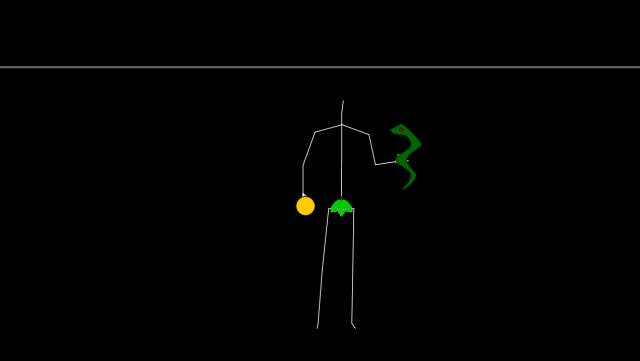

And then they’re brought into the program:



And here’s my code, from two separate files adapted from the templates that Golan gave us:

// Renders a BVH file with Processing v3.2.1
// Note: mouseX controls the camera.
import java.util.Arrays;

PBvh myBrekelBvh;
float[][] lastHandsPos;
float[][] lastFingersPos;
float[] lastHeadPos;
float[] lastSpine1Pos;
float fastest = 0;
float cutOffHeight = 350;
float eatRadius = 100;
float maxYSpeedForPick = 0.75;
float minXZSpeedForPick = 1.0;
float eatSpeed = 3.0;
float minFingerHandDistance = 18.0;
boolean[] hasFruit = new boolean[]{false,false};
String[] fruit = new String[]{"none","none"};

int counter = 0;

//------------------------------------------------
void setup() {
  size( 1280, 720 );

  // Load a BVH file recorded with a Kinect v2, made in Brekel Pro Body v2.
  //myBrekelBvh = new PBvh( loadStrings( "pickingFruit.bvh" ) );

  myBrekelBvh = new PBvh( loadStrings( "allTogether.bvh" ) );

  //listBones();
}

//------------------------------------------------
void draw() {
  background(0, 0, 0);

  updateAndDrawBody();  // Update and render the BVH file. See code below.
}


//------------------------------------------------
void updateAndDrawBody() {
  pushMatrix();
  translate(width/2, height/2+300); // position the body in space
  scale(-1, -1); // correct for the coordinate system orientation
  scale(1.5,1.5);
  drawCutOffLine();

  if (!myBrekelBvh.parser.paused) {
    myBrekelBvh.update(millis()); // update the BVH playback
  }

  // myBrekelBvh.draw();        // one way to draw the BVH file (see PBvh.pde)
  myBrekelBvh.drawBones();      // a different way to draw the BVH file

  if (myBrekelBvh.parser.loopedThisFrame) {
    lastHandsPos = null;
    lastFingersPos = null;
    lastHeadPos = null;
    lastSpine1Pos = null;
    fruit = new String[]{"none","none"};
    hasFruit = new boolean[]{false,false};
  }

  checkForPick();
  checkForEat();
  myBrekelBvh.drawFruit(fruit);
  myBrekelBvh.drawLeaf();

  popMatrix();
}

//------------------------------------------------
void drawCutOffLine() {
  stroke(100);
  line(-width,cutOffHeight,width,cutOffHeight);
}

//------------------------------------------------
void listBones() {
  List<BvhBone> theBvhBones = myBrekelBvh.parser.getBones();
  int nBones = theBvhBones.size();       // How many bones are there?
  for (int i=0; i<nBones; i++) {         // Loop over all the bones
      BvhBone aBone = theBvhBones.get(i);  // Get the i'th bone
      println(aBone.getName());
  }
}

//------------------------------------------------
void checkForPick() {
  float[][] handsPos;
  handsPos = myBrekelBvh.getHandsPos();
  if (lastHandsPos == null) {
    lastHandsPos = handsPos;
  }
  float[][][] fingersPos;
  fingersPos = myBrekelBvh.getFingersPos();
  lastHandsPos = handsPos;
  if (handsPos[0][1] > cutOffHeight) {
    if ((fingersAreNearHand(handsPos[0],fingersPos[0])) && (!hasFruit[0])) {
      println("PICKED LEFT");
      fruit = new String[]{getRandomFruit(),fruit[1]};
      hasFruit = new boolean[]{true,hasFruit[1]};
      counter += 1;
    }
  }
  if (handsPos[1][1] > cutOffHeight) {
    if ((fingersAreNearHand(handsPos[1],fingersPos[1])) && (!hasFruit[1])) {
      println("PICKED RIGHT");
      fruit = new String[]{fruit[0],getRandomFruit()};
      hasFruit = new boolean[]{hasFruit[0],true};
      counter += 1;
    }
  }
}

boolean fingersAreNearHand(float[] handPos, float[][] fingersPos) {
  boolean near = false;
  for (int i=0; i<5; i++) {
    float d = distance(handPos,fingersPos[i]);
    if (d < minFingerHandDistance) {
      near = true;
    }
  }
  return near;
}

float distance(float[] a, float[] b) {
  return sqrt(sq(a[0]-b[0])+sq(a[1]-b[1])+sq(a[2]-b[2]));
}

void checkForEat() {
  float[] headPos;
  headPos = myBrekelBvh.getHeadPos();
   if (lastHeadPos == null) {
    lastHeadPos = headPos;
  }
  float [] spine1Pos;
  spine1Pos = myBrekelBvh.getSpine1Pos();
   if (lastSpine1Pos == null) {
    lastSpine1Pos = spine1Pos;
  }
  float[][] handsPos;
  handsPos = myBrekelBvh.getHandsPos();
  if (lastHandsPos == null) {
    lastHandsPos = handsPos;
  }
  float headSpeed = calcHeadSpeed(lastHeadPos,headPos);
  float spine1Speed = calcSpine1Speed(lastSpine1Pos,spine1Pos);
  lastHeadPos = headPos;
  lastSpine1Pos = spine1Pos;
  fill(0,0,255);
  //ellipse(headPos[0],headPos[1],10,10);
  noFill();
  stroke(100);
  //ellipse(headPos[0],headPos[1],2*eatRadius,2*eatRadius);
  //println("headPos: " + headPos + " spine1Pos: " + spine1Pos);
  float[] d = calcHeadHandsDistance(headPos,handsPos);
  if ((d[0] < eatRadius)) {
    if ((headSpeed > eatSpeed) && (spine1Speed < eatSpeed) && (hasFruit[0])) {
      println("EATEN LEFT");
      fruit = new String[]{"none",fruit[1]};
      hasFruit = new boolean[]{false,hasFruit[1]};
    }
  }
  if ((d[1] < eatRadius)) {
    if ((headSpeed > eatSpeed) && (spine1Speed < eatSpeed) && (hasFruit[1])) {
      println("EATEN RIGHT");
      fruit = new String[]{fruit[0],"none"};
      hasFruit = new boolean[]{hasFruit[0],false};
    }
  }

}


float[] calcHandsXZVelocity(float[][] lastHandsPos, float[][] currHandsPos) {
  //Calculates velocity in x-z dimension for both hands.
  float[] xzVel = new float[2];
  for (int i=0; i<2; i++) {
    float lastX = lastHandsPos[i][0];
    float lastZ = lastHandsPos[i][2];
    float currX = currHandsPos[i][0];
    float currZ = currHandsPos[i][2];
    float d = sqrt(sq(lastX-currX)+sq(lastZ-currZ));
    xzVel[i] = d;
  }
  return xzVel; // [left v, right v]
}

float[] calcHandsYVelocity(float[][] lastHandsPos, float[][] currHandsPos) {
  float[] yVel = new float[2];
  for (int i=0; i<2; i++) {
    float lastY = lastHandsPos[i][1];
    float currY = currHandsPos[i][1];
    float dy = abs(lastY - currY);
    yVel[i] = dy;
  }
  return yVel;
}

float calcHeadSpeed(float[] lastHeadPos, float[] currHeadPos) {
  float lastX = lastHeadPos[0];
  float lastY = lastHeadPos[1];
  float lastZ = lastHeadPos[2];
  float currX = currHeadPos[0];
  float currY = currHeadPos[1];
  float currZ = currHeadPos[2];
  float s = sqrt(sq(lastX-currX)+sq(lastY-currY)+sq(lastZ-currZ));
  return s;
}

float calcSpine1Speed(float[] lastSpine1Pos, float[] currSpine1Pos) {
  float lastX = lastSpine1Pos[0];
  float lastY = lastSpine1Pos[1];
  float lastZ = lastSpine1Pos[2];
  float currX = currSpine1Pos[0];
  float currY = currSpine1Pos[1];
  float currZ = currSpine1Pos[2];
  float s = sqrt(sq(lastX-currX)+sq(lastY-currY)+sq(lastZ-currZ));
  return s;
}

float[] calcHeadHandsDistance(float[] headPos, float[][] handsPos) {
  float[] d = new float[2];
  float headX = headPos[0];
  float headY = headPos[1];
  float headZ = headPos[2];
  for (int i=0; i<2; i++) {
    float handX = handsPos[i][0];
    float handY = handsPos[i][1];
    float handZ = handsPos[i][2];
    d[i] = sqrt(sq(headX - handX) + sq(headY - handY) + sq(headZ - handZ));
  }
  return d;
}

String getRandomFruit() {
  String[] possibles = new String[]{"apple","orange","banana"};
  int rand = floor(random(0,3));
  /*if (counter == 0) {
    return "orange";
  } else if (counter == 1) {
    return "banana";
  } else if (counter == 2) {
    return "snake";
  } else if (counter == 3) {
    return "apple";
  }
  if (random(0,1) > 0.8) {
    return "snake";
  }*/
  return possibles[rand];
}

//------------------------------------------------
void mousePressed() {
  myBrekelBvh.parser.paused = !myBrekelBvh.parser.paused;
}
import java.util.List;

class PBvh
{
  BvhParser parser;

  PBvh(String[] data) {
    parser = new BvhParser();
    parser.init();
    parser.parse( data );
  }

  void update( int ms ) {
    parser.moveMsTo( ms );//30-sec loop
    parser.update();
  }

  //------------------------------------------------
  void draw() {
    // Previous method of drawing, provided by Rhizomatiks/Perfume

    fill(color(255));
    for ( BvhBone b : parser.getBones()) {
      pushMatrix();
      translate(b.absPos.x, b.absPos.y, b.absPos.z);
      ellipse(0, 0, 2, 2);
      popMatrix();
      if (!b.hasChildren()) {
        pushMatrix();
        translate( b.absEndPos.x, b.absEndPos.y, b.absEndPos.z);
        ellipse(0, 0, 10, 10);
        popMatrix();
      }
    }
  }

  //------------------------------------------------
  // Alternate method of drawing, added by Golan
  void drawBones() {
    noFill();
    stroke(255);
    strokeWeight(1.0);

    if (parser.loopedThisFrame) {
      println("looped");
    }

    List<BvhBone> theBvhBones = parser.getBones();
    int nBones = theBvhBones.size();       // How many bones are there?
    for (int i=0; i<nBones; i++) {         // Loop over all the bones
      BvhBone aBone = theBvhBones.get(i);  // Get the i'th bone

      PVector boneCoord0 = aBone.absPos;   // Get its start point
      float x0 = boneCoord0.x;             // Get the (x,y,z) values
      float y0 = boneCoord0.y;             // of its start point
      //float z0 = boneCoord0.z;

      if (aBone.hasChildren()) {

        // If this bone has children,
        // draw a line from this bone to each of its children
        List<BvhBone> childBvhBones = aBone.getChildren();
        int nChildren = childBvhBones.size();
        for (int j=0; j<nChildren; j++) {
          BvhBone aChildBone = childBvhBones.get(j);
          PVector boneCoord1 = aChildBone.absPos;

          float x1 = boneCoord1.x;
          float y1 = boneCoord1.y;
          //float z1 = boneCoord1.z;

          stroke(255);
          line(x0, y0, x1, y1);


        }
      } else {
        // Otherwise, if this bone has no children (it's a terminus)
        // then draw it differently.

        PVector boneCoord1 = aBone.absEndPos;  // Get its start point
        float x1 = boneCoord1.x;
        float y1 = boneCoord1.y;
        //float z1 = boneCoord1.z;

        line(x0, y0, x1, y1);

        String boneName = aBone.getName();
        if (boneName.equals("Head")) {
          pushMatrix();
          translate( x1, y1);
          noFill();
          //ellipse(0, 0, 30, 30);
          popMatrix();
        }
      }
    }
  }

  //------------------------------------------------
  // kerjos
  void drawFruit(String[] fruit) {
    for (int i=0; i<2; i++) {
      if (fruit[i] == "none") {
        continue;
      } else { //There is a fruit in this hand.
        float[][] handCenters;
        handCenters = getHandsCenterPos(); //[[lx,ly,lz],[rx,ry,rz]]
        float x = handCenters[i][0];
        float y = handCenters[i][1];
        if (fruit[i] == "apple") {
          pushMatrix();
          translate(x,y);
          scale(0.05,0.05);
          rotate(PI);
          drawApple();
          popMatrix();
        } else if (fruit[i] == "orange") {
          stroke(0);
          strokeWeight(1);
          fill(255,204,0);
          ellipse(x,y,25,25);
        } else if (fruit[i] == "banana") {
          pushMatrix();
          translate(x,y);
          scale(0.12,0.12);
          rotate(PI/2);
          drawBanana();
          popMatrix();
        } else if (fruit[i] == "snake") {
          pushMatrix();
          translate(x,y);
          scale(0.2,0.2);
          rotate(PI);
          drawSnake();
          popMatrix();
        }
      }
    }
  }

 void drawSnake() {
  noFill();
  stroke(0);
  strokeWeight(3);

  float h = 200;
  float t = 75;
  beginShape();
  fill(0, 102, 0);
  vertex(0,-h+t/2);
  bezierVertex(-t/2,-h+t/2, -t,-h+t/4, -t,-h);
  vertex(0,-h-t/2);
  bezierVertex(t/4,-h-t/2, h/2+t/2,-h/2-t/4, h/2+t/2,-h/2);
  bezierVertex(h/2+t/2,-h/2+t/4, t/2,-t/2, t/2,0);
  bezierVertex(t/2,t/2, h/2,h/2-t/4, h/2,h/2);
  bezierVertex(h/2,h/2+t/2, t/2,h, 0,h);
  bezierVertex(t/2,h-t/2, h/2-t/2,h/2+t/2, h/2-t/2,h/2);
  bezierVertex(h/2-t/2,h/2-t/2, -t/2,t/2, -t/2,0);
  bezierVertex(-t/2,-t/2, h/2-t/2,-h/2+t/2, h/2-t/2,-h/2);
  bezierVertex(h/2-t/2,-h/2-t/2, t/2,-h+t/2, 0,-h+t/2);


  endShape();

  fill(204, 0, 0);
  ellipse(0,-h,20,20);

}

  void drawApple() {
  float r = 100;

  //Stem
  float w = r/4;
  float h = r*1.5;
  stroke(0);
  strokeWeight(3);
  fill(102,51,0);
  pushMatrix();
  translate(0,-r*1.25);
  beginShape();
  vertex(w/2,0);
  bezierVertex(w/2,-h/2, w,-h, w*1.5,-h);
  vertex(-w/2,-h-w);
  bezierVertex(-w,-h, -w,-h/2, -w/2,0);
  endShape();
  popMatrix();

  //Red Fruit
  stroke(0);
  strokeWeight(3);
  fill(204,0,0);
  beginShape();
  //Top Left
  vertex(0,-r*1.25);
  bezierVertex(0,-r*1.5, -r*0.5,-r*2, -r,-r*2);
  bezierVertex(-r*1.5,-r*2, -r*2,-r*1.75, -r*2,-r);
  //Left Side
  bezierVertex(-r*2,r*0.5, -r*1.5,r*2, -r,r*2);
  //Bottom
  bezierVertex(-r*0.5,r*2, -r*0.5,r*1.5, 0,r*1.5);
  bezierVertex(r*0.5,r*1.5, r*0.5,r*2, r,r*2);
  //Right Side
  bezierVertex(r*1.5,r*2, r*2,r*0.5, r*2,-r);
  //Top Right
  bezierVertex(r*2,-r*1.75, r*1.5,-r*2, r,-r*2);
  bezierVertex(r*0.5,-r*2, 0,-r*1.5, 0,-r*1.25);
  endShape();


  }

  void drawBanana() {
  noFill();
  stroke(255,0,0);
  float w = 250;
  line(0,0,w/2,0);
  line(0,0,-w/2,0);

  //Stem
  float sw = w/25;
  float h = w*0.1;
  stroke(0);
  strokeWeight(3);
  fill(102,51,0);
  pushMatrix();
  translate(w/2+w/10,0);
  rotate(PI/4);
  beginShape();
  vertex(-sw/2,0);
  bezierVertex(-sw/2,-h/2, -sw,-h, -sw*1.5,-h);
  vertex(sw/2,-h-sw);
  bezierVertex(sw,-h, sw,-h/2, sw/2,0);
  endShape();
  popMatrix();

  //Yellow Fruit
  float tip = w/10;
  float side = w/5;
  float inside = w/3;
  stroke(0);
  strokeWeight(3);
  fill(255,255,0);
  beginShape();
  vertex(w/2,0);
  float nextX = w/2+(w/8)*cos(-PI/4);
  float nextY = 0-(w/8)*sin(-PI/4);
  bezierVertex(w/2+tip*cos(PI/6),0-tip*sin(PI/6), nextX+side*cos(PI/3),nextY-side*sin(PI/3), nextX,nextY);
  nextX = -w/2-(w/8)*cos(-PI/4);
  nextY = 0-(w/8)*sin(-PI/4);
  bezierVertex(0,2*w/3, nextX+side*cos(PI/4),nextY+side*sin(PI/4), nextX,nextY);
  float prevX = nextX;
  float prevY = nextY;
  bezierVertex(prevX-side*cos(PI/3),prevY-side*sin(PI/3), -w/2-tip*cos(PI/6),0-tip*sin(PI/6), -w/2,0);
  bezierVertex(-w/2+side*cos(PI/6),0+side*sin(PI/6), w/2-side*cos(PI/6),0+side*sin(PI/6), w/2,0);

  endShape();

  }

  void drawLeaf() {
    List<BvhBone> theBvhBones = parser.getBones();
    int nBones = theBvhBones.size();
    for (int i=0; i<nBones; i++) {
      BvhBone aBone = theBvhBones.get(i);

      PVector boneCoord0 = aBone.absPos;
      float x0 = boneCoord0.x;
      float y0 = boneCoord0.y;
      if (aBone.getName().equals("Hips")) {
        pushMatrix();
        translate(x0,y0);
        scale(0.1,0.1);
        rotate(PI);
        drawFigLeaf();
        popMatrix();
      }
    }
  }

 void drawFigLeaf() {
  noFill();
  stroke(255,0,0);
  float s = 200;
  pushMatrix();
  translate(0,-s/2);
  //Stem
  drawStem(s);
  //Center leaf tip
  drawLeafTip(s);
  //Right leaf tip
  pushMatrix();
  rotate(PI/4);
  drawLeafTip(s);
  popMatrix();
  //Left leaf tip
  pushMatrix();
  rotate(-PI/4);
  drawLeafTip(s);
  popMatrix();
  //Leaf body
  noStroke();
  fill(0, 204, 0);
  //line(-s/4,0,s/4,0);
  //stroke(0);
  beginShape();
  vertex(-s/8,s/2);
  bezierVertex(-s/16,s/2-s/16, -s/4,s/2-s/8, -s/4-s/64,s/2-s/16);
  vertex(-s/2-s/8,s/4+s/32);
  //bezierVertex(-s/2+3*s/16,s/4-s/16, -s/4,s/16, -s/4,0);
  //bezierVertex(-s/4,-s/16, 3*-s/16,-s/8, -s/8,-s/8);
  bezierVertex(-s/2-s/16,s/4-s/16, 3*-s/8,-s/8, -s/8,-s/8);
  bezierVertex(-s/16,-s/8, 0,-s/16, 0,0);
  bezierVertex(0,-s/16, s/16,-s/8, s/8,-s/8);
  bezierVertex(3*s/8,-s/8, s/2+s/16,s/4-s/16, s/2+s/8,s/4+s/32);
  //bezierVertex(3*s/16,-s/8, s/4,-s/16, s/4,0);
  //bezierVertex(s/4,s/16, s/2-3*s/16,s/4-s/16, s/2+s/8,s/4+s/32);
  vertex(s/4+s/64,s/2-s/16);
  bezierVertex(s/4,s/2-s/8, s/16,s/2-s/16, s/8,s/2);
  endShape();

  popMatrix();
}

void drawLeafTip(float s) {
  stroke(255);
  noFill();
  line(0,0,0,s);
  line(0,s/2,s/8,s/2);
  line(0,s/2,-s/8,s/2);
  line(0,2*s/3,s/4,2*s/3);
  line(0,2*s/3,-s/4,2*s/3);
  line(0,15*s/16,s/16,15*s/16);
  line(0,15*s/16,-s/16,15*s/16);

  //stroke(0);
  fill(0, 204, 0);
  beginShape();
  vertex(-s/8,s/2);
  bezierVertex(-s/8-s/16,s/2+s/16, -s/4,2*s/3-s/16, -s/4,2*s/3);
  vertex(-s/16,15*s/16);
  bezierVertex(-s/32,s, s/32,s, s/16,15*s/16);
  vertex(s/4,2*s/3);
  bezierVertex(s/4,2*s/3-s/16, s/8+s/16,s/2+s/16, s/8,s/2);


  endShape();

}

void drawStem(float s) {
  //Stem
  float w = s/16;
  float h = s/3;
  noStroke();
  //stroke(0);
  //strokeWeight(3);
  fill(102,51,0);
  beginShape();
  vertex(w/2,0);
  bezierVertex(w/2,-h/2, w,-h, w*1.5,-h);
  vertex(-w/2,-h-w);
  bezierVertex(-w,-h, -w,-h/2, -w/2,0);
  endShape();
}

  //------------------------------------------------
  float[][] getHandsPos() {
    List<BvhBone> theBvhBones = parser.getBones();
    int nBones = theBvhBones.size();
    float[][] handsPos = new float[2][3];
    for (int i=0; i<nBones; i++) {
      BvhBone aBone = theBvhBones.get(i);
      PVector boneCoord = aBone.absPos;
      float x = boneCoord.x;
      float y = boneCoord.y;
      float z = boneCoord.z;
      if (aBone.getName().equals("LeftHand")) {
        handsPos[0][0] = x;
        handsPos[0][1] = y;
        handsPos[0][2] = z;
        fill(255,0,0);
        //ellipse(x,y,10,10);
      } else if (aBone.getName().equals("RightHand")) {
        handsPos[1][0] = x;
        handsPos[1][1] = y;
        handsPos[1][2] = z;
        fill(0,255,0);
        //ellipse(x,y,10,10);
      }
    }
    return handsPos;
  }

  //------------------------------------------------
  float[][] getHandsCenterPos() {
    List<BvhBone> theBvhBones = parser.getBones();
    int nBones = theBvhBones.size();
    float[][] handsPos = new float[2][3];
    for (int i=0; i<nBones; i++) {
      BvhBone aBone = theBvhBones.get(i);
      PVector boneCoord = aBone.absPos;
      float x = boneCoord.x;
      float y = boneCoord.y;
      float z = boneCoord.z;
      if (aBone.getName().equals("LeftHandMiddle1")) {
        handsPos[0][0] = x;
        handsPos[0][1] = y;
        handsPos[0][2] = z;
      } else if (aBone.getName().equals("RightHandMiddle1")) {
        handsPos[1][0] = x;
        handsPos[1][1] = y;
        handsPos[1][2] = z;
      }
    }
    return handsPos;
  }

  //------------------------------------------------
  float[][][] getFingersPos() {
    List<BvhBone> theBvhBones = parser.getBones();
    int nBones = theBvhBones.size();
    float[][][] fingersPos = new float[2][5][3];
    for (int i=0; i<nBones; i++) {
      BvhBone aBone = theBvhBones.get(i);
      PVector boneCoord = aBone.absPos;
      float x = boneCoord.x;
      float y = boneCoord.y;
      float z = boneCoord.z;
      fill(255,0,0);
      if (aBone.getName().equals("LeftHandIndex3")) {
        fingersPos[0][1][0] = x;
        fingersPos[0][1][1] = y;
        fingersPos[0][1][2] = z;
        //ellipse(x,y,3,3);
      } else if (aBone.getName().equals("LeftHandMiddle3")) {
        fingersPos[0][2][0] = x;
        fingersPos[0][2][1] = y;
        fingersPos[0][2][2] = z;
        //ellipse(x,y,3,3);
      } else if (aBone.getName().equals("LeftHandRing3")) {
        fingersPos[0][3][0] = x;
        fingersPos[0][3][1] = y;
        fingersPos[0][3][2] = z;
        //ellipse(x,y,3,3);
      } else if (aBone.getName().equals("LeftHandPinky3")) {
        fingersPos[0][4][0] = x;
        fingersPos[0][4][1] = y;
        fingersPos[0][4][2] = z;
        //ellipse(x,y,3,3);
      } else if (aBone.getName().equals("LeftHandThumb3")) {
        fingersPos[0][0][0] = x;
        fingersPos[0][0][1] = y;
        fingersPos[0][0][2] = z;
        //ellipse(x,y,3,3);
      }
      fill(0,255,0);
      if (aBone.getName().equals("RightHandIndex3")) {
        fingersPos[1][1][0] = x;
        fingersPos[1][1][1] = y;
        fingersPos[1][1][2] = z;
        //ellipse(x,y,3,3);
      } else if (aBone.getName().equals("RightHandMiddle3")) {
        fingersPos[1][2][0] = x;
        fingersPos[1][2][1] = y;
        fingersPos[1][2][2] = z;
        //ellipse(x,y,3,3);
      } else if (aBone.getName().equals("RightHandRing3")) {
        fingersPos[1][3][0] = x;
        fingersPos[1][3][1] = y;
        fingersPos[1][3][2] = z;
        //ellipse(x,y,3,3);
      } else if (aBone.getName().equals("RightHandPinky3")) {
        fingersPos[1][4][0] = x;
        fingersPos[1][4][1] = y;
        fingersPos[1][4][2] = z;
        //ellipse(x,y,3,3);
      } else if (aBone.getName().equals("RightHandThumb3")) {
        fingersPos[1][0][0] = x;
        fingersPos[1][0][1] = y;
        fingersPos[1][0][2] = z;
        //ellipse(x,y,3,3);
      }
    }
    return fingersPos;
  }

  //------------------------------------------------
  float[] getHeadPos() {
    List<BvhBone> theBvhBones = parser.getBones();
    int nBones = theBvhBones.size();
    float[] headPos = new float[3];
    for (int i=0; i<nBones; i++) {
      BvhBone aBone = theBvhBones.get(i);
      PVector boneCoord = aBone.absEndPos;
      float x = boneCoord.x;
      float y = boneCoord.y;
      float z = boneCoord.z;
      if (aBone.getName().equals("Head")) {
        headPos[0] = x;
        headPos[1] = y;
        headPos[2] = z;
      }
    }
    return headPos;
  }

   //------------------------------------------------
  float[] getSpine1Pos() {
    List<BvhBone> theBvhBones = parser.getBones();
    int nBones = theBvhBones.size();
    float[] spine1Pos = new float[3];
    for (int i=0; i<nBones; i++) {
      BvhBone aBone = theBvhBones.get(i);
      PVector boneCoord = aBone.absPos;
      float x = boneCoord.x;
      float y = boneCoord.y;
      float z = boneCoord.z;
      if (aBone.getName().equals("Spine1")) {
        spine1Pos[0] = x;
        spine1Pos[1] = y;
        spine1Pos[2] = z;
      }
    }
    return spine1Pos;
  }

}
