dechoes – Intersections

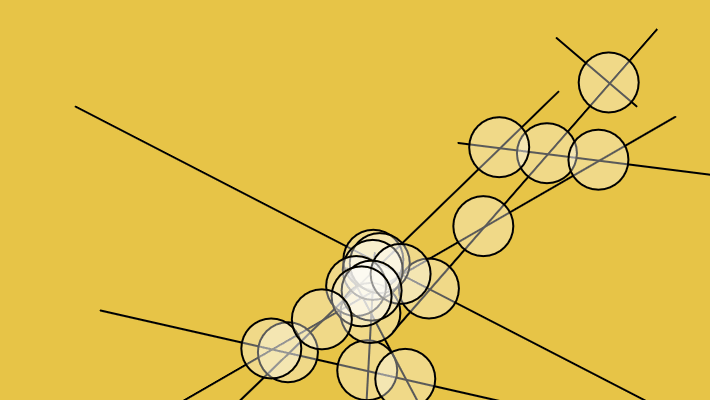

Here is a gif of it in full, intense action:



Note: Not quite sure why open-processing formatted the gif like that. I re-tried it multiple times, no success. I’ll ask you about it in class.

Code:

var Lines = [];
var nLines = 12;

var PosX;
var PosY;

function setup() {
  createCanvas(710, 400);
  refresh();

}

function refresh() {
  Lines = [];
  for (var i = 0; i < nLines; i++) {
    Lines.push(new myLine());
  }

}

function draw() {

  background(232, 197, 71);

  //Drawing the Lines
  for (var i = 0; i < nLines; i++) {
    line(Lines[i].x1, Lines[i].y1, Lines[i].x2, Lines[i].y2);
  }


  for (var j = 0; j < nLines; j++) {
    for (var k = 0; k < j; k++) {

      var ax = Lines[j].x1;
      var ay = Lines[j].y1;
      var bx = Lines[j].x2;
      var by = Lines[j].y2;
      var cx = Lines[k].x1;
      var cy = Lines[k].y1;
      var dx = Lines[k].x2;
      var dy = Lines[k].y2;

      clculqteQndDrqzIntersection(ax, ay, bx, by, cx, cy, dx, dy);
    }
  }
}

/////////////////////////////////////////////////////////////

function clculqteQndDrqzIntersection(x1, y1, x2, y2, x3, y3, x4, y4) {


  var numerUa = ((x4 - x3) * (y1 - y3) - (y4 - y3) * (x1 - x3));
  var numerUb = ((x2 - x1) * (y1 - y3) - (y2 - y1) * (x1 - x3));
  var denom = ((y4 - y3) * (x2 - x1) - (x4 - x3) * (y2 - y1));

  var ua = numerUa / denom;
  var ub = numerUb / denom;

  PosX = x1 + (ua * (x2 - x1));
  PosY = y1 + (ua * (y2 - y1));


  //---------------------------------------------------------

  if (ua < 0 || ua > 1 || ub < 0 || ub > 1) {
    return;
  } else {

    PosX = x1 + (ua * (x2 - x1));
    PosY = y1 + (ua * (y2 - y1));
    //print("INTERSECTION FOUND");

    fill(255, 255, 255, 90);
    ellipse(PosX, PosY, 30, 30);
  }
}


// CLASS
function myLine() {

  this.x1 = random(0, width);
  this.y1 = random(0, height);
  this.x2 = random(0, width);
  this.y2 = random(0, height);
}


function mousePressed() {
  refresh();
}
