Sama Kanbour

23 Jan 2014

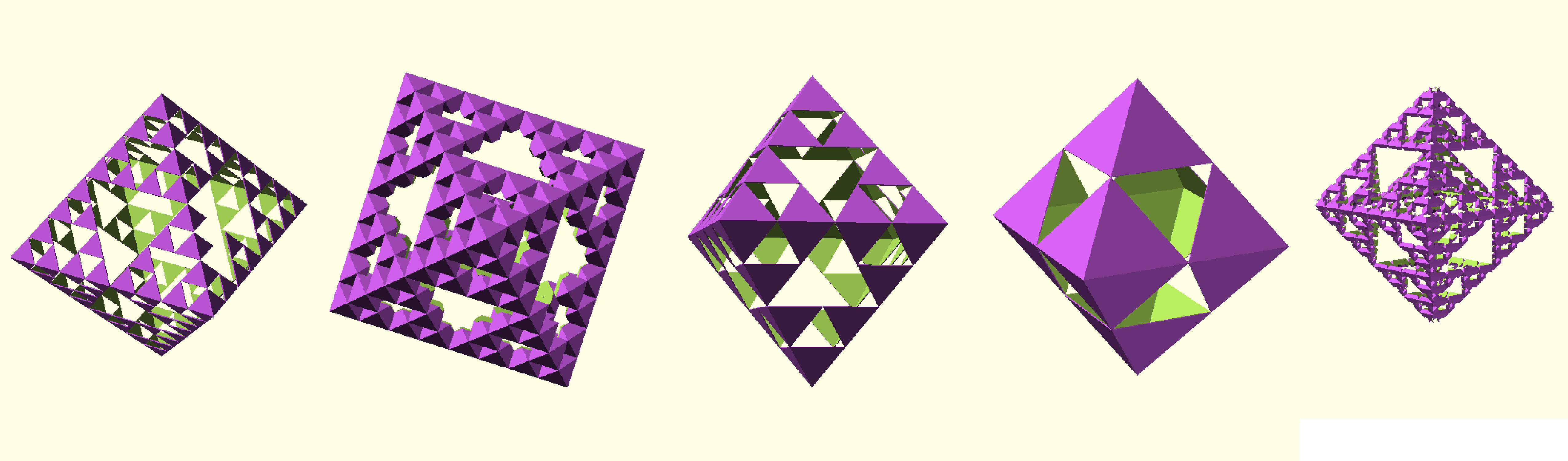

Lighting geometric design created with #OpenSCAD by @samakanbour.

I really love these beautifully designed candle containers that diffuse light through their holes. Useful, useable and desirable, these objects are mass-produced around the world. I can easily imagine consumers personalizing and purchasing them to decorate their homes and offices. Inspired by the Freshfiber lighting collection, I tried to capture a triangular geometric design, and generate different versions by playing with its parameters. I am pleased with the simplicity and depth of the designs, but I am not entirely satisfied with their limited variations. I would have loved having other than triangular shapes, such as circular or cubic.

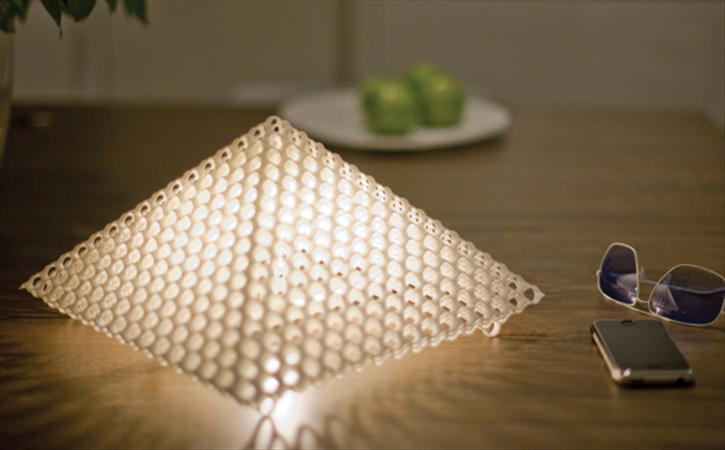

FAL

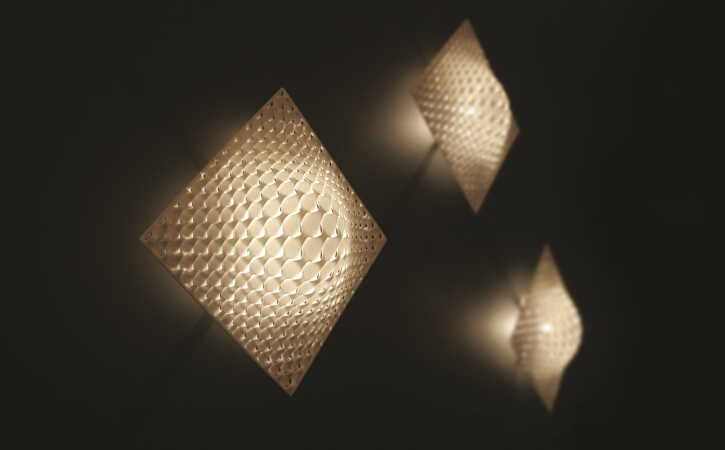

FOC

Thing Link

GitHub

light

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

// inspired by NateTG

maxlevel = 3;
size = 30;
thickness = 10;

difference()  {
	color("MediumOrchid") sierpinski(side=size,maxlevel=maxlevel);
	middle(size - thickness);
	cylinder(r = 3/maxlevel, h = 50, center=true);
	rotate([90]) cylinder(r = 3/maxlevel, h = 50, center=true);
	rotate([0, 90]) cylinder(r = 3/maxlevel, h = 50, center=true);
}

module triangle(side, maxlevel=3) {
	difference() {
	polyhedron(points=[[side,0,0],[0,side,0],[0,0,side],[-side,0,0],[0,-side,0],[0,0,-side]],
	triangles=[[0,2,1],[0,4,2],[0,5,4],[0,1,5],[3,1,2],[3,2,4],[3,4,5],[3,5,1]]);
	rotate([45]) cylinder(r = 2/maxlevel, h = 50, center=true);
	rotate([-45]) cylinder(r = 2/maxlevel, h = 50, center=true);
	rotate([0, -45]) cylinder(r = 2/maxlevel, h = 50, center=true);
	rotate([0, 45]) cylinder(r = 2/maxlevel, h = 50, center=true);
	}
}

module middle(side) {
polyhedron(points=[[side,0,0],[0,side,0],[0,0,side],[-side,0,0],[0,-side,0],[0,0,-side]], triangles=[[0,2,1],[0,4,2],[0,5,4],[0,1,5],[3,1,2],[3,2,4],[3,4,5],[3,5,1]]);

}

module sierpinski(side=1,maxlevel=3,level=1) {
	for(i =[[side*sqrt(2)/4,0,0],[0,side*sqrt(2)/4,0],[0,0,side*sqrt(2)/4],[-side*sqrt(2)/4,0,0],[0,-side*sqrt(2)/4,0],	[0,0,-side*sqrt(2)/4]]) {
		if(level<maxlevel) {
			translate(i) sierpinski(side=side/2,maxlevel=maxlevel,level=level+1);
		} else {
			translate(i) triangle(side=side*sqrt(2)/4, maxlevel=maxlevel);
		}
	}
}
